This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Plants have adapted to environmental challenges by expressing many plant genes in response to the stresses. Among those genes, CCCH zinc finger proteins are involved in abiotic and biotic stresses. Transgenic soybean plants overexpressing AtSZF2 were produced to investigate that its ectopic overexpression enhanced salt stress tolerance by Agrobacterium-mediated transformation using half-seed explants. Sixteen transgenic lines were chosen to analyze for T-DNA insertion and transcription levels, and most of them were confirmed as positive. In further analysis with Southern blot, stable transformation event and copy number were confirmed. Following high salinity stress on the detached leaf and whole plant of two transgenic lines (#4 and #6) revealed that the ectopic expression of AtSZF2 was correlated with stress tolerance in phenotype, ion leakage and chlorophyll content with statistical significance. In another test with 20% PEG treatment, similar tolerance of transgenic plants was observed with lower ion leakage and higher chlorophyll content, indicating that the damage of cell membrane was prevented in transgenic plants. Finally, expression of various abiotic stress-responding genes was detected by reverse transcriptase and quantitative real-time PCR analysis with the transgenic plants. It could be proposed that introduction of AtSZF2 resulted in the modulation of ABA/stress responsive gene expression in transgenic soybean plants and make them tolerant against salt stress. Considering soybean as a salt-sensitive crop and importance of salt stress tolerance in specific farming region, the introduction of AtSZF2 may provide an approach for crop improvement in soybean breeding.
Due to their immobility, plants are exposed to environmental stresses including soil salinity, drought and cold temperatures. Salinity stress represents one of the most consequential environmental factors reducing the quantity and quality of agricultural product (Flowers 2004; Munns and Tester 2008). When grown under the high salinity condition, plants are adversely affected in every aspect of plant physiology and metabolism such as homeostasis disruption and ionic toxicity. However, plants have adapted to environmental challenges by expressing many plant genes in response to the stresses. The cellular and molecular mechanism of plants to abiotic stresses have been studied by many research groups (Shinozaki and Yamaguchi-Shinozaki 2000; Hasegawa et al. 2000; Xiong et al. 2002; Zhu 2002; Shinozaki et al. 2003; Tester and Davenport 2003; Zhu 2003; Sun et al. 2007; Munns and Testter 2008). In those studies, many abiotic stress-inducible transcription factors have been identified, and their functions have been characterized.
Zinc finger motifs consist of cysteines and/or histidines which coordinate a zinc ion to form local peptide structures that are required for specific biological functions. CCCH-type zinc finger proteins belonging to zinc finger protein family contain tandem zinc-binding motifs characterized by three cysteines followed by one histidine (CX78CX5CX3H; X represents any amino acid) (Miller et al. 1985; Hall 2005). CCCH-type zinc finger proteins role as DNA-binding transcription factors. However, most of CCCH-type zinc finger proteins have shown to be associated with RNA metabolism by directly binding to RNA targets (Bai and Tolias 1996; Carballo et al. 1998; Lai et al. 2006; Hurt et al. 2009). In addition, some CCCH zinc finger proteins are involved in abiotic and biotic stresses. For instance, GHZFP1, a CCCH-type zinc finger protein from cotton, was found to enhance tolerance to salt stress and resistance to fungal disease in transgenic tobacco (Guo et al. 2009). Oxidation–related Zinc Finger 1 (AtOZF1) and salt stress-inducible zinc finger protein1 (AtSZF1) and AtSZF2 were involved in regulating the resistance of Arabidopsis plants to oxidative and salt stress response, respectively (Sun et al. 2007; Huang et al. 2011).
Soybean (Glycine max [L.] Merr.) is an important crop providing proteins and vegetable oils and its yield is negatively influenced by a variety of environmental conditions. High salt is one of the abiotic stresses that causes negative effects on plant growth and agronomic traits that significantly reduce the yield of soybean. Improvement of resistance of the crop to abiotic stress through traditional breeding technology requires a lot of time and efforts. The genetic transformation technique provides a powerful tool for overcoming abiotic stress of many species. (Gelvin 2005; Phang et al. 2008; He et al. 2010; Zhang et al. 2010; Bhuiyan et al. 2011; Li et al. 2011; Subramanyam et al. 2011; Movahedi et al. 2012; Yarra et al. 2012). Soybean transgenic plants with multiple functions have been developed using Agrobacterium-mediated transformation system based on the cotyledonary-node (CN) method (Hinchee et al. 1988) and improved by using half-seed explants (Paz et al. 2006). The trials with additional treatments including the mixture of thiol compounds, sonication and vacuum have elevated transformation efficiency to much higher level (Meurer et al. 1998; Olhoft et al. 2003; Kim et al. 2012; Kim et al. 2013; Kim et al. 2016). With the high transformation rate, various genes could be introduced into soybean to investigate any physiological change or to achieve agronomical improvement. The improvement of salt tolerance is significantly important in crop breeding (Kim et al. 2015; Kwon et al. 2015).
In this study, we produced transgenic soybean plants overexpressing AtSZF2 and confirmed that its ectopic overexpression enhanced salt stress tolerance, compared to wild type plants.
MATERIALS AND METHODS
Vector construction and Agrobacterium preparation
An AtSZF2 cDNA open reading frame was amplified from its original vector by using AtSZF2-F primer (5′-CACCATGTGCGGTGCAAAGAGCAACC-3′) and AtSZF2-R primer (5′-TTATGCCACAATCTGCTGCTCAT-3′). The original vector was provided by Dr. Dong-Hee Lee (Genomine, Korea) and the resulting PCR products were cloned to pENTR/D-TOPO vector (Invitrogen, Carlsbad, CA, USA) yielding pENTR-AtSZF2.
The entry vector (pENTR-AtSZF2) reacted with the destination vector pB2GW7.0 (VIB-Ghent University, Ghent, Belgium; Karimi et al. 2002) and LR clonase (Invitrogen) yielding pB2GW7.0-AtSZF2. The resultant plasmid was transferred into Agrobacterium tumefaciens strain EHA105 for soybean transformation and subsequently cultured on solid YEP media containing 25 mg/L rifampicin and 50 mg/L spectinomycin at 28°C for 2 days. Single colony was chosen and grown in 20 mL liquid YEP medium containing 25 mg/L rifampicin and 50 mg/L spectinomycin at 28°C for a day until OD600 reached between 0.6 and 0.8. Agrobacterium competent cells for plant transformation were prepared by mixing actively growing Agrobacterium harboring pB2GW7.0-AtSZF2 with equal volumes of 30% glycerol. Aliquots of competent cells were frozen and kept at −70°C until used.
Soybean transformation
Mature Korean soybean seeds (Glycine max L. cv. Kwangankong) were utilized in Agrobacterium-mediated transformation experiments. For seed preparation, soybean seeds were surface-sterilized for 20 hours using chlorine gas produced by mixing 5 mL of 12 N HCl and 95 mL of 12% sodium hypochlorite. One day before the inoculation, seeds were soaked in sterile distilled water for about 20 hours at room temperature. Previously prepared Agrobacterium competent cell was cultured in 200 mL of liquid YEP media containing 25 mg/L rifampicin and 50 mg/L spectinomycin for nearly 20 hours until OD600 value reached between 0.6 and 0.8. The Agrobacterium culture was centrifuged for 15 minutes at 20°C, 7000 rpm. The cell pellet was re-suspended in 5 mL and 15 mL liquid co-cultivation medium (CCM) containing 0.32 g/L B5 salts with B5 vitamins, 4.26 g/L MES, 1.67 mg/L 6-BA, 0.25 mg/L GA3, 0.2 mM acetosyringone, 3.3 mM L-cysteine, 1.0 mM sodium thiosulfate, 1.0 mM DDT and 3% sucrose, pH 5.4. The cell pellet re-suspended in 5 mL liquid CCM was used as the dipping solution. A longitudinal cut along the hilum of seed was made to separate the cotyledons, and the seed coat was removed. The embryonic axis was excised to obtain the half-seed explants. The embryonic axis of explants was wounded seven or eight times using a No. 11 scalpel blade (Feather, Japan) with the 5 mL of the concentrated Agrobacterium suspension for dipping treatment. All of the inoculated explants were immersed in 15 mL Agrobacterium suspension, treated with sonication for 20 seconds and vacuum for 30 seconds. After 30 min of inoculation, cotyledons were placed adaxial side down on CCM solidified with 4.8 g/L agar overlaid with filter paper. The co-cultivation continued for 5 days at 24°C. After 5 day of co-cultivation, the explants were completely washed in liquid shoot induction medium (SIM) containing 3.2 g/L B5 salt with B5 vitamins, 0.6 g/L MES, 1.67 mg/L 6-BA, 250 mg/L cefotaxime, 50 mg/L vancomycin, 100 mg/L ticarcillin and 3% sucrose, pH 5.6. The explants were subsequently embedded in solid SIM with flat side up. After 2 weeks, explants were transferred to fresh SIM containing 10 mg/L DL- phosphinothricin (PPT). After 14 days of culture on SIM with PPT, explants were transferred to shoot elongation medium (SEM) containing 4.4 g/L MS salt with B5 vitamins, 0.6 g/L MES, 50 mg/L asparagine, 100 mg/L pyroglutamic acid, 0.1 mg/L IAA, 0.5 mg/L GA3, 1 mg/L zeatin riboside, 250 mg/L cefotaxime, 50 mg/L vancomycin, 100 mg/L ticarcillin, 5 mg/L PPT and 3% sucrose, pH 5.6. Selection during the shoot elongation stage was carried with 5 mg/L PPT, and the explants were transferred to fresh SEM every 14 days. Elongated shoots were cut and dipped in sterile 1 mg/L IBA for 3 minutes and then transferred to rooting medium containing 4.4 g/L MS salt with B5 vitamins, 0.6 mg/L MES, 25 mg/L asparagine, 25 mg/L pyroglutamic acid, 50 mg/L cefotaxime, 50 mg/L vancomycin, 50 mg/L ticarcillin and 3% sucrose, pH 5.6. Rooted plantlets were transplanted in small pots containing the mixture of soil and vermiculite. The plants (T0) were grown in small pots for 1–3 weeks at 24°C, 18 hours photoperiod with acclimation procedure and transferred to big pots in greenhouse. T0 plants with two trifoliates were screened using an herbicide paint assay to identify putative transformants that expressed the Bar gene. The upper surface of a leaf was treated with 100 mg/L PPT using a small brush. The response to the herbicide was observed at 3–5 days after PPT application. The PPT-resistant T0 plants were grown in the greenhouse until maturity, and T1 seeds were harvested.
Genomic DNA analysis of transgenic plants
Genomic DNA was extracted from leaf tissues of T0 soybean plants using the cetyltrimethylammonium bromide. The polymerase chain reaction (PCR) was performed with KOD FX polymerase (TOYOBO, Japan) and two primer sets were designed in the regions of AtSZF2 (5′-GCAGACGGGTCGGGTCTAAGAAGA-3′/5′-CTTGTCTCTACTCGCTGCACCATT-3′) and Bar (5′-CATGTAATGCTGCTCAAGGTACGC-3′/5′-CATGTAATGCTGCTCAAGGTACGC-3′) to amplify the DNA fragments of 1538 bp and 550 bp in size, respectively. To confirm the introduction of T-DNA insertion into plant genome, additional primers were prepared to amplify the both end regions of vector constructs: for DNA from left board (LB) to Bar, 5′-TGGCTGGTGGCAGGATATATTGTG-3′/5′-AGACAAGCACGGTCAACTTCCGTA-3′, and for DNA from AtSZF2 to right board (RB), 5′-CAGTCTCCTGAGATGTCTGTTATG-3′/5′-TTAAACTGAAGGCGGGAAACGACA-3′. PCRs were performed with the same KOD FX polymerase to generate 862 bp and 1310 bp amplified products, respectively.
For Southern blot analysis, three micrograms of the genomic DNA from both the non-transgenic (NT) and T1 transgenic soybean plants were digested overnight with restriction enzymes, fractionated on 0.8% agarose gel, alkaline-transferred onto Hybond N+nylon membranes (Amersham Pharmacia, USA), and probed using biotin-labeled TPSP and soybean AtSZF2 gene probes. DNA probe preparation was conducted with the Nick Translation System (Invitrogen), in accordance with the manufacturer’s instructions. The biotin-labelled DNA was then detected via chemiluminescence using streptavidin alkaline phosphatase and CDP-Star® (Applied Biosystems, Bedford, MA). Hybridization, membrane washing and detection were all conducted in accordance with the manufacturer’s instructions.
RNA analysis of transgenic plants
Total RNAs were isolated from both the non-transgenic and transgenic T0 soybean plants using Plant RNA Purification Reagent (Invitrogen) according to the manufacturer’s instructions. Reverse transcriptase-PCR (RT-PCR) was performed using SuperScriptTM One-Step RT-PCR with Platinum® Taq (Invitrogen) as the manufacturer’s instruction. The primer pairs used in the RT-PCR are presented in Table 1. For an internal control to normalize the amount of leaf RNAs, 18S rRNA was used.
Quantitative real-time PCR (qRT-PCR) was performed in 96-well plates with the CFX-96TM Real-Time system (Bio-Rad, Hercules, CA, USA). First-strand cDNA was synthesized using SuperscriptTM II Reverse Transcriptase (Invitrogen) and oligo-dT (Invitrogen), following the user manual. The quantity and quality of the synthesized cDNA were determined by a spectrophotometer. To reduce systematic error from variation of cDNA quantity for PCR, all cDNA samples were diluted to 3 ng/μL and stored at −20°C until used. Each reaction contained 3 μL (3 ng/μL) of cDNA, 0.2 μL (10 pm/μL) of each primer, and 10 μL SYBR® Premix Ex TaqTM (TAKARA, Japan) in a total reaction volume of 20 μL. The PCR conditions were 95°C for 3 minutes, 40 cycles of 10 seconds at 95°C, 10 seconds at 55°C and 20 seconds at 72 °C, followed by the generation of a dissociation curve by increasing temperature from 65 °C to 95°C to check for amplification specificity. The efficiency and standard deviation of each primer were given by Bio-Rad CFX manager v1. 6. 541. 1028 on a standard curve generated from a twofold dilution series of one sample at five dilution points for two technical replicates. Baseline and threshold cycle (Ct value) were automatically calculated with default parameters. The primer pairs used in the qRT-PCR are presented in Table 2. The constitutive Actin11 was used as an internal control to normalize the amount of leaf RNAs of soybean plants (Hu et al. 2009).
Stress tolerance analysis of transgenic plants
For salt tolerance analysis, seeds of the NT, transformed with empty vector carrying only Bar (EV) and transgenic plants were germinated and grown until vegetative stage 2 (V2-stage, the plant exhibits 2 nodes on the main stem with fully expanded leaves) on wetted rock wools (urmedia, Korea) in the following auto-regulated environment; 25°C, a long day photoperiod (18 hours light/ 6 hours dark), 60% humidity. NT, EV and transgenic plants of the V2-stage were transferred to Hoagland’s solution and then subsequently acclimated for 72 hours. After the acclimation, the detached leaves of NT, EV and transgenic plants from the first node were floated on 200 mM NaCl solution for 16 days. The whole NT, EV and transgenic plants with V2-stage were transferred to Hoagland’s solution containing the 200 mM NaCl and grown for 10 days. To confirm the tolerance of osmotic stress, NT, EV and transgenic plants of the V2-stage in rock wool were treated with 40 mL of 20% PEG 8000 solution every three days for 21 days.
Determination of ion leakage and chlorophyll content
The extent of ion leakage from leaves after stress treatment was determined by measuring the conductivity. One gram of leaves was soaked in 10 mL of distilled water for 24 hours at room temperature. After the incubation, the conductivity of the bathing solution (Lt) was measured with a conductivity meter (Model EC-400L, istek, Korea). The leaves returned to the bathing solution, introduced into sealed tubes, and incubated with the bathing solution at 95°C for 20 minutes. After cooling to room temperature, the conductivity of the bathing solution (L0) was measured again. The Lt/L0 X 100% values were calculated and used to evaluate relative electrolyte leakage (Fan et al. 1997). Statistical analysis was also performed using Excel T-Test program to confirm the significance test. Asterisks indicate significant changes compared to NT plants (*P<0.05; **P<0.01).
Total chlorophyll from leaves of non-transgenic and transgenic plants was isolated in 80% acetone (v/v). The chlorophyll content was calculated spectrophotometrically as described by Wu et al. (2008). Statistical analysis was also performed using Excel T-Test program to confirm the significance test. Asterisks indicate significant changes compared to NT plants (*P<0.05; **P<0.01).
RESULTS
Production of transgenic soybean plants via Agrobacterium-mediated transformation
To produce transgenic soybean plants expressing AtSZF2, we constructed a plasmid for soybean transformation. The AtSZF2 was under the control of the cauliflower mosaic virus 35S promoter and the DL-phosphinothricin (PPT) resistance gene was included for selectable marker (Fig. 1). Half seeds of the Korean soybean cultivar (Glycine max L. cv. Kwangankong) were co-cultivated with Agrobacterium strains harboring pB2GW7.0-AtSZF2 for 5 days (Fig. 2a). Before co-cultivation, three additional treatments including dipping with high concentration of Agrobacterium solution, sonication and vacuum were applied to soybean transformation with half-seed. The explants were placed on the shoot induction media (SIM) without the PPT, and then normal shoot formation and proliferation were observed (Fig. 2b). During two weeks of selection on SIM with 10 mg/L PPT, most of primary shoots became necrotic (Fig. 2c). After four weeks on SIM, cotyledons were removed completely, and explants were transferred to shoot elongation media (SEM) with 5 mg/L PPT (Fig. 2d). The elongated shoots after four to six weeks were transferred to root induction medium (RIM) (Fig. 2e). Roots were formed properly when elongated shoots were chosen with relatively larger size of leaves. Rooted plantlets were transplanted to a small pot containing the mixture of soil and placed into a majenta jar for acclimation (Fig. 2f). Well-grown plants (T0) were transplanted in the large pots and transferred to the greenhouse (Fig. 2g). Herbicide-resistance of the transgenic soybean plants was tested at 5–7 days after the herbicide application with 100 mg/L PPT. The primary determination whether the regenerated plants is positive or negative was decided by leaf painting (Fig. 2h). With this construct, the whole procedure, starting from seed preparation to seed harvest, has taken about 7 months. A total of 16 transgenic soybean plants were generated with a transformation efficiency of about 4% from 3 batches of experiments, in which 150 soybean seeds were used for each time (data not shown). All these plants were grown in the greenhouse, and T1 seeds were harvested.
Analysis of transgene integration and expression
To verify transgene integration in 35S::AtSZF2 transformants, genomic DNAs from all putative T0 transformants were isolated and subjected to PCR analysis using primers designed to amplify the coding sequences of the AtSZF2 and Bar, respectively. To identify T-DNA insertions into the plant genome, the intactness of the introduced gene regions was examined by further genomic PCR analysis to amplify the both end regions of the vector construct (Fig. 3). Almost all of putative transformants were introduced successfully as a complete transgene. One (line #2) out of 12 transgenic lines had missing region of the integrated vector sequences. To analyze the transcript levels of AtSZF2, RT-PCR was performed using RNAs extracted from T0 transgenic soybean (Fig. 4). Both AtSZF2 and Bar transcript levels were investigated from 12 transgenic lines. As shown in Fig. 4, these genes were expressed in all the lines tested only except in line #2.
For further analysis, four representative transgenic lines were selected due to their phenotype and harvested seeds. To determine the number of insertion events in the selected four transgenic lines, genomic Southern blot analysis was performed using AtSZF2 probe. Genomic DNAs were isolated from NT and T1 transgenic plants (#4, #6, #13 and #15), and 3 μg of the genomic DNA was digested with HindIII and AflII and fractionated on 0.8% agarose gel. The resulting restriction bands shown in the Southern blot analysis confirmed the presence of the AtSZF2 gene in the T1 soybean (Fig. 5). Line #6 showed one copy while lines #4, #13 and #15 showed either two or three copies when digested with HindIII and AflII. Two transgenic lines (#4 and #6) that contained single or two copy of insertions of the transgene were chosen for the further functional analysis of introduced AtSZF2 gene.
Response of transgenic soybean plants to salt stress
To investigate whether the expression of AtSZF2 was correlated with stress tolerance in transgenic soybean plants, 1-node detached leaves of NT, EV and T2 transgenic lines (#4 and #6) were floated on 200 mM NaCl solution for 16 days (Fig. 6). After 16 days of the salt stress, leaves of NT and EV plants turned into yellow-green with a concomitant loss of chlorophyll, and showed necrosis, whereas leaves of transgenic lines continuously remained green (Fig. 6a). The chlorophyll contents in the leaves of NT, EV and transgenic plants were measured after high salt treatment. The chlorophyll contents in the leaves of transgenic lines were higher than those of the NT and EV plants floated on 200 mM NaCl solution with statistical significance (P<0.05) (Fig. 6b). The result indicates that transgenic lines (#4 and #6) are more tolerant to high salt stress. The seedlings of NT, EV and transgenic plants were further subjected to salt stress with 200 mM NaCl solution, and the phenotypic changes were observed (Fig. 7). NT, EV and transgenic plants were grown until vegetative stage 2 on wetted rock wool. No significant change was observed under normal growth condition when compared with NT and EV plants. Then, the V2-stage plants were soaked in 200 mM NaCl solution for 10 days. After 5 day of salt stress, 2nd-node leaves of NT and EV gradually withered and the color changed to yellow-green from the edge of the leaves while transgenic lines remained green. Phenotypic differences between NT and transgenic plants clearly appeared after 10 days of salt stress. The leaves of NT and EV showed severe wilting and chlorosis, followed by color change into yellow-green, whereas the transgenic lines were slowly etiolated from the edge of the leaves which indicates relative tolerance to salt stress (Fig. 7a). The enhanced salt tolerance of the transgenic lines was further verified by measuring changes in ion leakage and chlorophyll content (Fig. 7b and c). High salt stress caused a remarkable increase in ion leakage from leaves of NT and EV plants. In transgenic lines, ion leakage increased under high salt stress, but the degree was significantly weaker (P<0.01) than in NT and EV plants. In addition, chlorophyll contents of leaves in transgenic lines were significantly higher (P<0.05 in line #4 and P<0.01 in line #6) than those of NT and EV leaves after 10 day of salt treatment. These results indicate that the transgenic lines were less affected by salt stress and led to enhanced salt tolerance due to the reduction of cell membrane damage.
Response of transgenic soybean plants to osmotic stress
High salt environment generates osmotic stress on plants that is caused by reduced water availability in soil (Ren et al. 2016). To study the response of transgenic plants to osmotic stress, we treated seedlings of NT, EV and T1 transgenic plants (line #4 and #6) with 20% PEG solution for 21 days (Fig. 8). None of the plants showed any apparent differences after 7 days, but the leaves of NT and EV plants began to wither after 14 days. After 21 day of 20% PEG treatment, leaves of NT and EV plants showed noticeable damage with necrosis, compared to transgenic plants (Fig. 8a). We also performed physiological analysis to evaluate the ion leakage and chlorophyll content with NT, EV and transgenic leaves after 20% PEG treatment. As shown in Fig. 8b, the extent of ion leakage ranged from 7.31% to 10.35% in all the plants under normal conditions. With the osmotic stress condition, the extent of ion leakage increased gradually, but was lower in the transgenic lines after 14 and 21 day of 20% PEG treatment. The ion leakage ratio was 50% higher than untreated values after 21 days in the NT and EV leaves. In contrast, transgenic lines showed 30% higher in ion leakage, compared to the untreated (P<0.05 in line #4 and P<0.01 in line #6). There was no statistically significant difference in chlorophyll content among the NT, EV and transgenic plants under normal growth condition. However, the chlorophyll content in leaves significantly decreased by 21 day of 20% PEG treatment. Moreover, the chlorophyll loss in transgenic plants was significantly lower than that in the NT and EV plants (P<0.05 in line #4 and P<0.01 in line #6) (Fig. 8c). According to the results above, it is clear that the damage of cell membrane was prevented in transgenic plants and the chlorophyll content was maintained because of transgene expression.
Expression analysis of abiotic stress responsive genes in transgenic soybean plants
To investigate the expression of various stress-related genes in transgenic soybean plants, a number of genes were selected as candidate target genes for RT-PCR and qRT-PCR analysis (Fig. 9). The transcript levels of ABA/stress responsive genes were enhanced in transgenic lines, compared to NT and EV plants. The expression of the GmDREB2 (Chen et al. 2007), an A-5 subgroup gene of the DREB (dehydration-responsive element-binding protein) subfamily, increased in the transgenic lines. Strong enhancement of GmGT-2A and GmGT-2B (Xie et al. 2009) transcript level was also observed. These transcription factors were among Trihelix family and known as GT factors (DNA binding proteins with specificity for GT-elements). An increase in the GmbZIP62 (Liao et al. 2008) was also observed in the transgenic plants. The RNA level of the abiotic stress responsive genes, ethylene response factor gene GmERF3 (Zhang et al. 2009) and WRKY-type transcription factor gene GmWRKY54 (Zhou et al. 2008) barely increased. In case of the osmotin-like protein b isoform gene GmOLPb (Tachi et al. 2009) and plant-homeo-domain gene GmPHD2 (Wei et al. 2009), their expressions enhanced significantly in the transgenic plant. In summary, introduction of AtSZF2 resulted in the modulation of ABA/stress responsive gene expression in transgenic soybean plants and make them tolerant against salt stress.
DISCUSSION
To improve the production of successful soybean transgenic plants, previously reported half-seed method (Paz et al. 2006) with modification was used in this experiment. We have proven the efficiency of transformation with dipping with high concentration of Agrobacterium solution, sonication and vacuum during the inoculation procedure (Kim et al. 2012; Kim et al. 2013; Kim et al. 2016). Our method also included the addition of thiol compound including sodium thiosulfate, L-cysteine and dithiothreitol (DTT) in co-cultivation stage to prevent the cell damage. We believed that these thiol compounds could reduce apoptotic cell response after wounding and Agro-infection, and resulted in the increased early organ formation during shoot induction and elongation stages of regeneration. Our soybean genotype, Kwangankong, especially well adopted with thiol compound. This modified protocol enabled us to establish the stable Agrobacterium-mediated soybean transformation with less time consumption.
Many stress-related genes have been identified and characterized for their roles (Gelvin 2005; He et al. 2010; Zhang et al. 2010; Subramanyam et al. 2011; Bhuiyan et al. 2011; Li et al. 2011; Movahedi et al. 2012; Yarra et al. 2012). The goal of our study was to investigate the potential of the salt stress tolerant candidate gene in major crop such as soybean. Among many candidate genes, CCCH-type zinc finger protein which has shown to be associated with RNA metabolism (Bai and Tolias 1996; Carballo et al. 1998; Lai et al. 2006; Hurt et al. 2009) and known to be involved in abiotic and biotic stresses could be a good gene source for salt stress tolerance. In previous report, GHZFP1, a CCCH-type zinc finger protein from cotton, was found to enhance the tolerance of salt stress (Guo et al. 2009). Salt stress-inducible zinc finger protein1 (AtSZF1) and AtSZF2 were also reported for their function in regulating the resistance of Arabidopsis plants to oxidative and salt stress response, respectively (Sun et al. 2007; Huang et al. 2011). With such a previous study, we now need to introduce this gene into crop plants for the practical use in agriculture. In this study, AtSZF2 was transformed into soybean by Agrobacterium-mediated transformation to produce salt stress tolerant soybean. Transgenic plants showed normal growth under high salt condition, while leaves of NT and EV plants became wrinkled and discolored, and died eventually. It is well known that plants with tolerance to high salinity and drought stress have better ability to survive in stressful environmental conditions due to the reduced alteration of cell membrane permeability during osmotic adjustment in high salinity condition. This result suggests that the effect of AtSZF2 increased the ability of transgenic plants to counteract the damage of salinity stress on endogenous cell membranes, which allowed the transgenic plants to survive under the stress conditions. The chlorophyll change is also considered as an important factor for the physiological response to salt stress in plants. The maintenance of higher chlorophyll content in transgenic plants could lead to their enhanced salt tolerance. Even though EV is a little different from control, it is clear that the salt tolerance is from gene itself. With all the evidence of physiological response in transgenic plants, it is clear that the enhanced tolerance of high salinity is triggered by introduced AtSZF2 in transgenic soybean. Therefore, genetic transformation will be a powerful tool to enhance the tolerance to abiotic stresses in the crop breeding.
Soybean is considered as a salt-sensitive crop, which is severely affected by salt stress that is harmful to plant growth. Salt stress significantly reduces plant height and leaf size, decreases seed quality and chlorophyll content in plant. Finally, high soil salinity considerably affects seed yield, which is an important factor in crop productivity (Ren et al. 2016). In this study, we introduced AtSZF2 gene from Arabidopsis into soybean using Agrobacterium-mediated transformation in order to improve salt tolerance of soybean. The result obtained in our study suggests that the overexpression of AtSZF2 in soybean may provide an approach for crop improvement through genetic transformation.
ACKNOWLEDGEMENTS
This work was supported by the Next-Generation BioGreen 21 Program (Code PJ011150), Rural Development Administration, and Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, Forestry and Fisheries (Code 112124-5), Republic of Korea.
Fig. 1
Schematic representation of the T-DNA of the recombinant binary vector pB2GW7.0-AtSZF2 containing AtSZF2 and Bar used for soybean transformation. LB/RB, left/right T-DNA border sequences; p35S/T35S, CaMV (cauliflower mosaic virus) 35S promoter/terminator; Bar, coding region of the DL-phosphinothricin resistance gene. The probe region used for genomic Southern blot analysis presented in Fig. 5 is indicated with solid line. The AflII and HindIII restriction enzyme sites are also marked.
Fig. 2
Production of soybean transgenic plants with AtSZF2 via Agrobacterium-mediated transformation. (a) Half seed explants right after infection (left) and at five day after inoculation (right); (b) Shoot induction medium without PPT; (c) Shoot induction medium containing 10 mg/L PPT for bar selection for another 14 days; (d) Shoot elongation medium with 5 mg/L PPT; (e) Rooting medium; (f) Acclimation of putative transgenic plant in a small pot; (g) Transgenic plant in a large pot in a greenhouse; (h) Non-transgenic plant was sensitive (left) and T0 transgenic plant was resistant (right) at five day after PPT leaf painting.

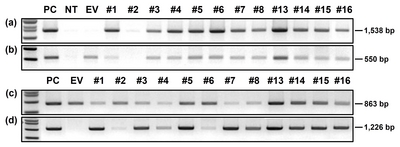

Fig. 3
Confirmation of AtSZF2 transformants using PCR amplification of genomic DNA samples extracted from T0 transgenic leaf tissues. (a) AtSZF2; (b) Bar; (c) the DNAs between left border (LB) and Bar; (d) the DNAs between AtSZF2 and right border (RB); NT, non-transgenic plant as a negative control; PC, binary vector carrying AtSZF2 and Bar as a positive control; EV, transformed with empty vector carrying only Bar; #1~#16, T0AtSZF2 transgenic lines.
Fig. 4
Expression of AtSZF2 and Bar in T0 transgenic plant. Total RNA was extracted from T0 plants, and then analyzed by RT-PCR with 18S rRNA as a quantitative control. NT, non-transgenic plant; #1~#16, T0AtSZF2 transgenic lines.

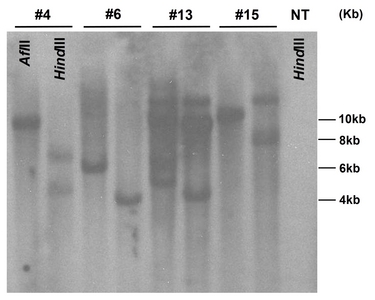

Fig. 5
Genomic Southern blot analysis of AtSZF2 transgenic soybean plants. Three micrograms of genomic DNAs from leaf tissues were digested with AflII and HindIII, and hybridized with probe AtSZF2. The DNA molecular size markers are indicated on the right. NT, non-transgenic plant; #4, #6, #13 and #15, T1AtSZF2 transgenic lines.

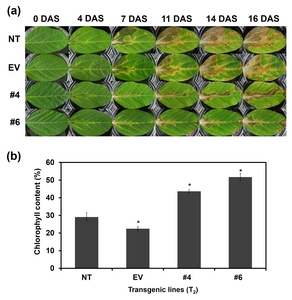

Fig. 6
Salt tolerance analysis of the detached leaves in NT and AtSZF2 T2 transgenic plants (#4 and #6). (a) Comparison of NT, EV and transgenic plants exposed to salt stress. Plants were grown until vegetative stage 2 on wetted rock wool under 16 hours of light and 8 hours of darkness at 24°C and then 1-node leaves were floated on 200 mM NaCl solution for 16 days. The photographs showed representative leaves at indicated days after salt treatment. (b) The chlorophyll contents were measured using the 1-node leaves of NT, EV and transgenic plants after 16 day of salt stress. NT, non-transgenic plant; EV, transformed with empty vector carrying only Bar; #4 and #6; T2 transgenic lines, DAS; day after salt stress. Error bars indicated mean±standard deviation. Asterisks indicated significant differences compared to the NT plant (*P<0.05; **P<0.01).

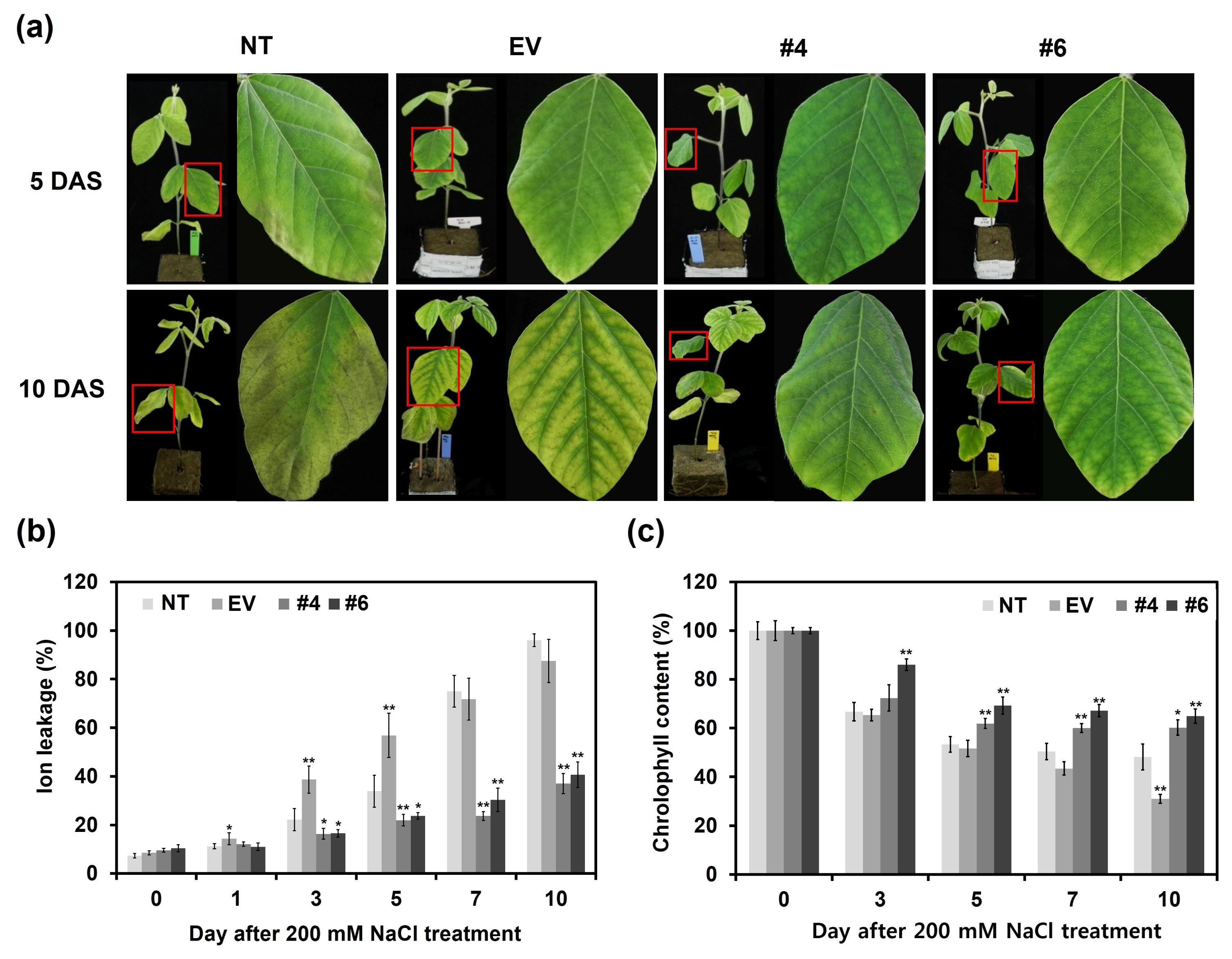

Fig. 7
Salt tolerance analysis of the whole plant in NT and AtSZF2 T2 transgenic plants (#4 and #6). (a) Comparison of NT, EV and transgenic plants exposed to salt stress. Plants were grown until vegetative stage 2 (V2) on wetted rock wool under 16 hours of light and 8 hours of darkness at 24°C and then V2 plants were soaked in 200 mM NaCl solution for 10 days. The photographs were taken at 5 and 10 day after salt treatment. (b, c) Ion leakage and chlorophyll contents were measured using 2-node leaves of NT, EV and transgenic plants at the indicated day after salt treatment. NT, non-transgenic plant; EV, transformed with empty vector carrying only Bar; #4 and #6; T2 transgenic lines, DAS; day after salt treatment. Error bars indicated mean±standard deviation. Asterisks indicated significant differences compared to the NT plant (*P<0.05; **P<0.01).

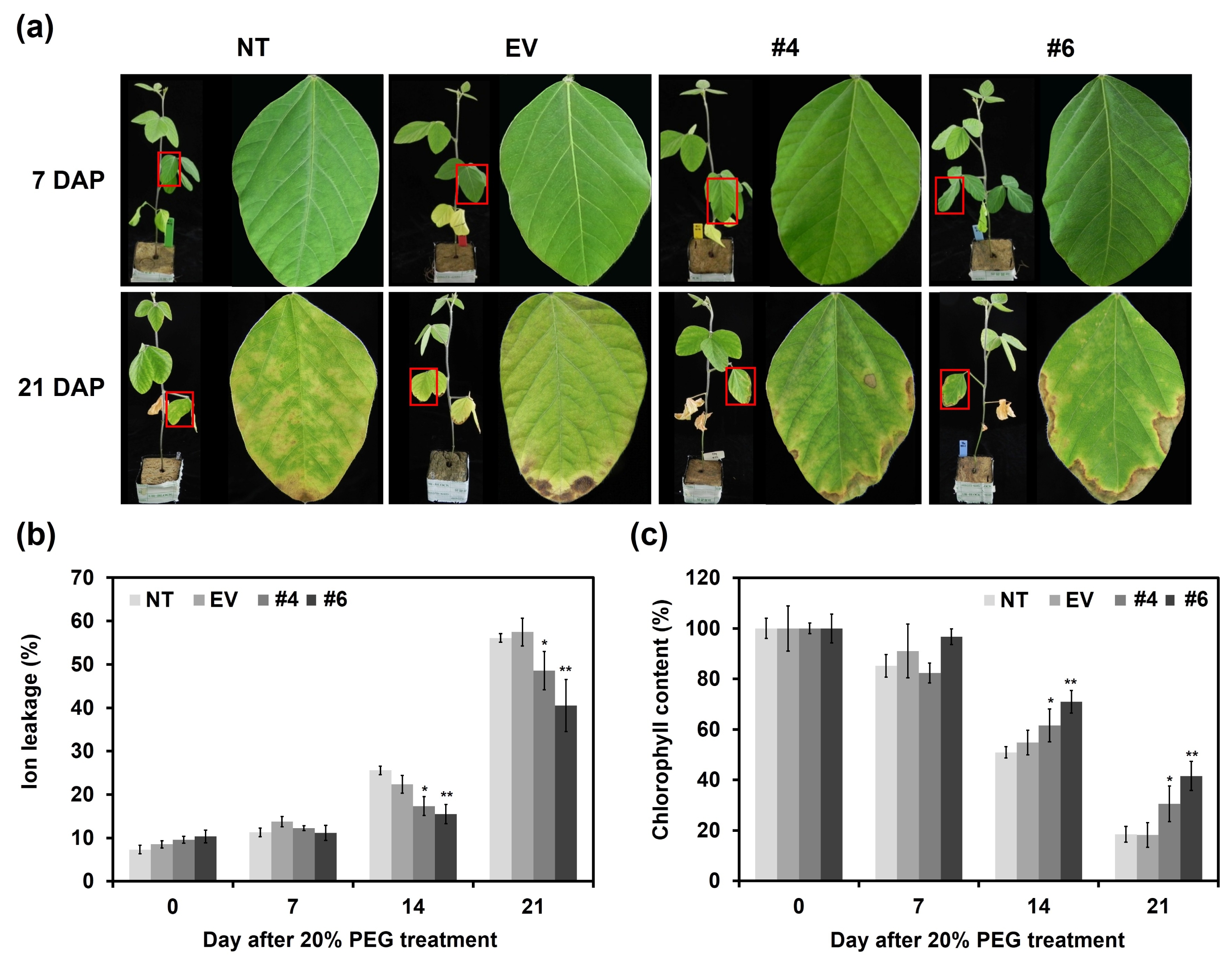

Fig. 8
Drought tolerance analysis of the whole plants in NT and AtSZF2 T2 transgenic plants. (a) Comparison of NT, EV and transgenic plants exposed to drought stress. Plants were grown until vegetative stage 2 (V2) on wetted rock wool under 16 hours of light and 8 hours of darkness at 24°C and then V2 plants were poured 40 mL of 20% PEG solution into the rock wool every three days for 21 days. The photographs were taken at 7 and 21 day after 20% PEG treatment. (b, c) Ion leakage and chlorophyll contents were measured using 2-node leaves of NT, EV and transgenic plants at the indicated day after 20% PEG treatment. NT, non-transgenic plant; EV, transformed with empty vector carrying only Bar; #4 and #6; T2 transgenic lines, DAP; day after 20% PEG treatment. Error bars indicated mean ± standard deviation. Asterisks indicated significant differences compared to the NT plant (*P<0.05; **P<0.01).

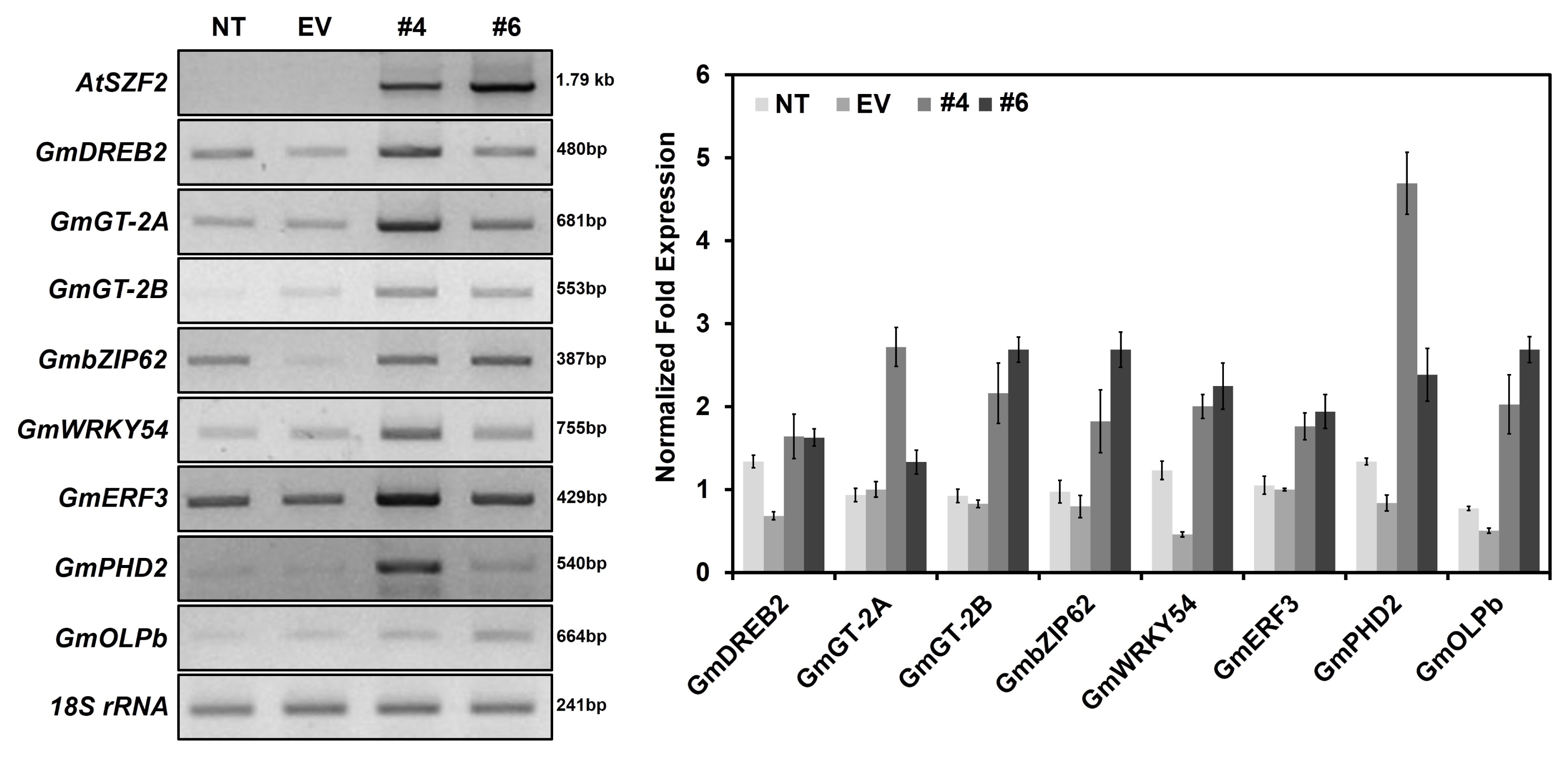

Fig. 9
Expression of abiotic stress-responsive genes in NT and T2AtSZF2 transgenic plants (#4 and #6) using RT-PCR (left) and qRT-PCR (right). NT, non-transgenic plant; EV, transformed with empty vector carrying only Bar; #4 and #6 T2 transgenic lines. The soybean 18S rRNA and Actin11 were used as quantitative controls.

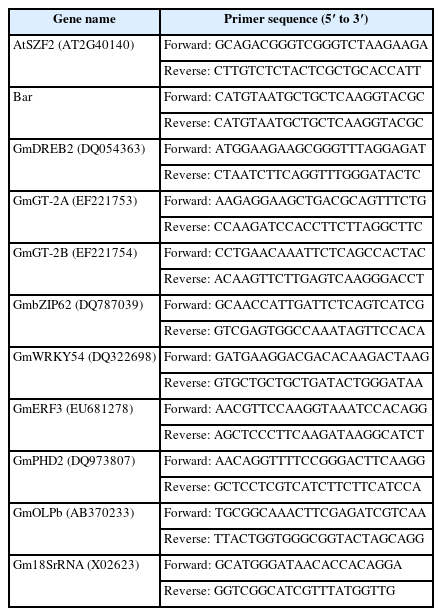

Table 1
Gene-specific primers used for RT-PCR.
Table 1
Gene name
Primer sequence (5′ to 3′)
AtSZF2 (AT2G40140)
Forward: GCAGACGGGTCGGGTCTAAGAAGA
Reverse: CTTGTCTCTACTCGCTGCACCATT
Bar
Forward: CATGTAATGCTGCTCAAGGTACGC
Reverse: CATGTAATGCTGCTCAAGGTACGC
GmDREB2 (DQ054363)
Forward: ATGGAAGAAGCGGGTTTAGGAGAT
Reverse: CTAATCTTCAGGTTTGGGATACTC
GmGT-2A (EF221753)
Forward: AAGAGGAAGCTGACGCAGTTTCTG
Reverse: CCAAGATCCACCTTCTTAGGCTTC
GmGT-2B (EF221754)
Forward: CCTGAACAAATTCTCAGCCACTAC
Reverse: ACAAGTTCTTGAGTCAAGGGACCT
GmbZIP62 (DQ787039)
Forward: GCAACCATTGATTCTCAGTCATCG
Reverse: GTCGAGTGGCCAAATAGTTCCACA
GmWRKY54 (DQ322698)
Forward: GATGAAGGACGACACAAGACTAAG
Reverse: GTGCTGCTGCTGATACTGGGATAA
GmERF3 (EU681278)
Forward: AACGTTCCAAGGTAAATCCACAGG
Reverse: AGCTCCCTTCAAGATAAGGCATCT
GmPHD2 (DQ973807)
Forward: AACAGGTTTTCCGGGACTTCAAGG
Reverse: GCTCCTCGTCATCTTCTTCATCCA
GmOLPb (AB370233)
Forward: TGCGGCAAACTTCGAGATCGTCAA
Reverse: TTACTGGTGGGCGGTACTAGCAGG
Gm18SrRNA (X02623)
Forward: GCATGGGATAACACCACAGGA
Reverse: GGTCGGCATCGTTTATGGTTG

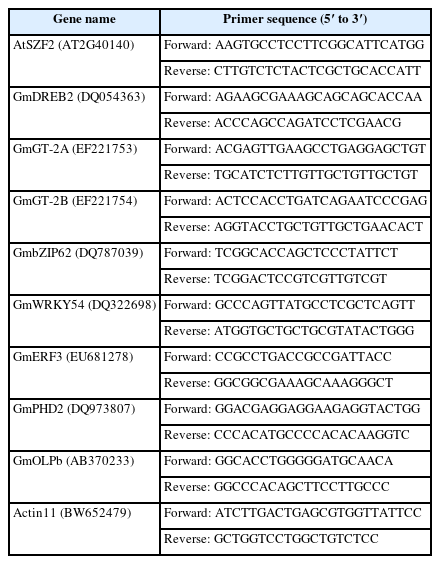

Table 2
Gene-specific primers used for qRT-PCR.
Table 2
Gene name
Primer sequence (5′ to 3′)
AtSZF2 (AT2G40140)
Forward: AAGTGCCTCCTTCGGCATTCATGG
Reverse: CTTGTCTCTACTCGCTGCACCATT
GmDREB2 (DQ054363)
Forward: AGAAGCGAAAGCAGCAGCACCAA
Reverse: ACCCAGCCAGATCCTCGAACG
GmGT-2A (EF221753)
Forward: ACGAGTTGAAGCCTGAGGAGCTGT
Reverse: TGCATCTCTTGTTGCTGTTGCTGT
GmGT-2B (EF221754)
Forward: ACTCCACCTGATCAGAATCCCGAG
Reverse: AGGTACCTGCTGTTGCTGAACACT
GmbZIP62 (DQ787039)
Forward: TCGGCACCAGCTCCCTATTCT
Reverse: TCGGACTCCGTCGTTGTCGT
GmWRKY54 (DQ322698)
Forward: GCCCAGTTATGCCTCGCTCAGTT
Reverse: ATGGTGCTGCTGCGTATACTGGG
GmERF3 (EU681278)
Forward: CCGCCTGACCGCCGATTACC
Reverse: GGCGGCGAAAGCAAAGGGCT
GmPHD2 (DQ973807)
Forward: GGACGAGGAGGAAGAGGTACTGG
Reverse: CCCACATGCCCCACACAAGGTC
GmOLPb (AB370233)
Forward: GGCACCTGGGGGATGCAACA
Reverse: GGCCCACAGCTTCCTTGCCC
Actin11 (BW652479)
Forward: ATCTTGACTGAGCGTGGTTATTCC
Reverse: GCTGGTCCTGGCTGTCTCC
